XMP Manual Pick and Place Systems
For SMT Low Volume Assembly

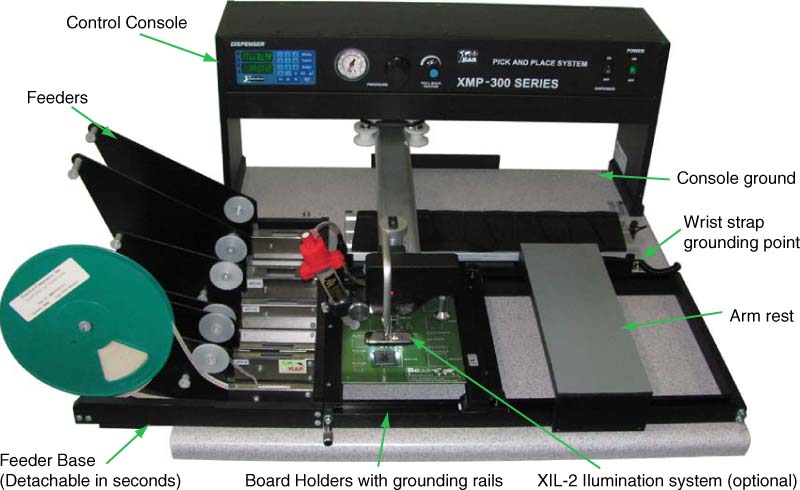

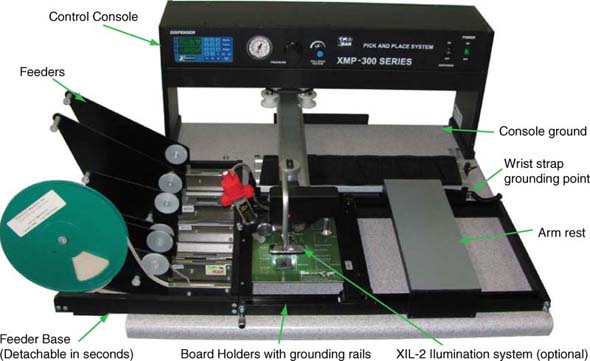

XMP-302D Manual Pick and Place System with Digital Dispenser For SMT Low Volume Assembly
(Shown with optional XIL-1 Illumination System)

The Pick and Place Machines offer the user best price/performance ratio and manual placement process improvement. Also unlike other manufacturers' models all subsystems were designed for ESD Safety and are connected in the machines to a common ESD ground.

Typical applications of manual pick and place systems are Low Volume Assembly, Prototyping, Pre-production runs, Repair and Rework. X-KAR XMP-300 Series models have common identical base and arm movement mechanism. They differ between one another only by different options, which are included in 4 standard packages.

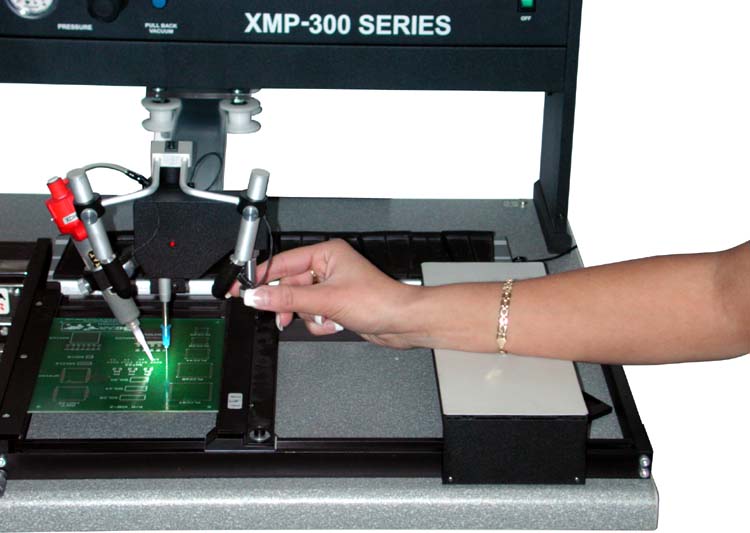

Model XMP-300 is a common base with a board holder, armrest, loose component tray XL-11, pick and place arm and a control console. The console contains a low noise vacuum source and a control circuitry allowing picking-up and releasing the component upon slight movement downward of a control knob.

Model XMP-301 is the XMP-300 machine with a feeder base and six feeders (3x8 mm, and one of each 12, 16 and 24 mm)

Model XMP-302 is the XMP-301 machine with additional analog dispensing system built-in inside the control console, and having the pick-up arm equipped with syringe holder, syringe adapter, and the air line to supply pressure to the syringe adapter.

Model XMP-302D is the XMP-302 in which analog dispenser was replaced by high accuracy programmable dispenser. The XMP-302 Models have detachable Dispensing Head, which allows the use of Dispensing section as an independent, hand-held Fluid Dispenser. The XMP-302D is equipped with a digital dispenser and it can provide various, accurate dispensing patterns.

Features:

Precise and smooth arm movement in both X and Y axis.
Accommodates large boards up to 15" x 12" (380 x 305 mm). Without a carousel and XL-11 tray loader the system will accommodate 15" x 24" PCB.
Supplied with feeders (3x8mm and one of each, 12mm, 16mm and 24mm) and loose component tray with 10 trays.
Quick changeover of feeders and loose components trays. Complete feeder base can be replaced by another one in seconds.
Fully Antistatic. It is supplied with AML-301A wrist strap and AS3-B grounding wire. All subsystems are connected to a common ESD ground.
Unique illumination system mounted on an arm and focusing light in a work area both during a component pick-up and its placement on a board.
Built-in dispenser (only models XMP-302) for paste of flux deposition during prototyping. XMP-302D offers 5 dispensing modes and storage for pre-programmed dispensing parameters for different boards or jobs. For a description of dispenser features please see pages 24 or 26. Dispenser features and controls on XMP Series machines are the same as the ones for free-standing units.

Note: When using XMP Series Machine with a dispenser, air filter on the supply line is needed.


XMP-300	XMP-301


XMP-302	XMP-302D

	XIL-1.1 Illumination system directs the light on the center of pick-up nozzle. It moves with the arm and provides illumination at the point of a component pick-up and during the component placement on a PCB.

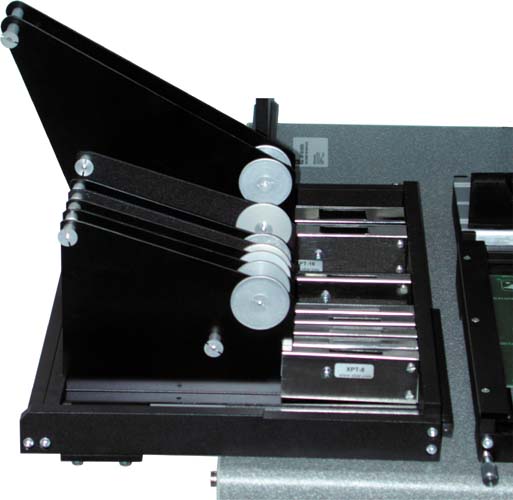

	XFB-1 Feeder Base with feeders can be prepared for a particular assembly and easily installed on the XMP Base. Spare replacement Feeder Bases are recommended for expedient assembly.
	XZ-AR1 - Arm rest is ESD Safe and connected to common ESD ground. It moves with the arm and provides support where needed.
