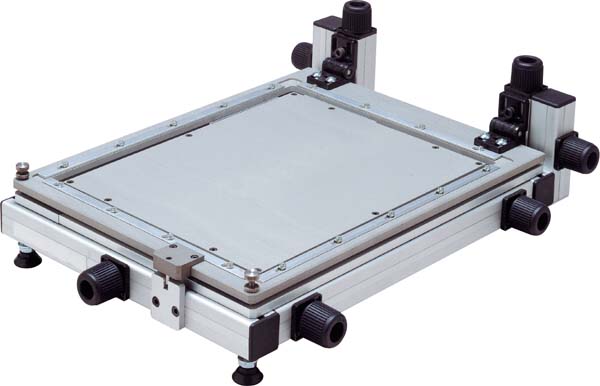

 X-PRINT305 Stencil Printer
This manual stencil printer is the low-cost solution for manual
solder-paste deposition during assembly process. Solid and sturdy
construction assures stability during paste printing. Alignment knobs
are large and easy to operate.
Features
- HIGH QUALITY AND PRECISION PRINTING
- The user can align the position of pads on a PCB and
corresponding pattern on the stencil easily and with high accuracy.
- SOLID ALUMINUM BODY
- Solid aluminum body assures long-term use and protects against
frame deformation caused by mechanical shock.
- QUICK AND EASY STENCIL CHANGE
- The stencil can be changed quickly when replacement is needed
for paste application on another PCB.
- MANAGEMENT
- Spare frames are easy to store and allow quick set-up of
production run.
Note: Stencil itself is frameless (stencil is not supplied
with the printer). To make a frameless stencil please contact local
stencil manufacturer. The manufacturer will need the stencil's mounting
holes dimensions and overall size (see X-PRINT manual) and the gerber
file of your board(s) to make your stencil.
(Certificate for free stencil included) |
High quality and precision printing
|
Technical Specifications
| Base adjustment (x, y axis) |
5 mm ( .2") |
| Base adjustment (z axis) |
5 mm ( .2") |
| Theta base adjustment |
2° |
| Adjustments Accuracy |
0,03 mm (.001") |
| Dimensions |
23" x 19" x 7.8"
(584x483x200
mm)
|
| Max working area |
305x381 mm (12" x 15") |
| Weight |
28 kg (63 lbs.) |
| Shipping package weight |
35 kg (77 lbs.) |
| Stencil itself is frameless (stencil is not
supplied with the printer) |
